Automatic Screw Capping Machine ACSM-V26 is Cost-Effective
This compact and user-friendly machine is designed for the automatic closing of various container lids, including sauce caps, pump caps, detergent caps, cosmetic caps, plastic caps, and other screw closures.
Thanks to high-precision robotic arm technology, the system provides a stable, efficient, and reliable capping process.
The automatic screw capping machine ASCM-V26 is user-friendly and durable.
The aesthetically designed housing from the renowned Dutchpacks series fits perfectly into modern production environments. The machine is equipped with high-quality electrical components from well-known brands and requires minimal maintenance. It is an ideal choice for companies aiming for automated, future-proof packaging solutions.
The machine is suitable for containers with a diameter of 50 to 130 mm and a height of 50 to 200 mm, with both dimensions easily adjustable to meet various requirements. With a capacity of up to 50 packages per minute, this machine provides an efficient solution for fast and reliable package sealing.
The machine operates on a power supply of 230V and a frequency of 50Hz, with a power consumption of 3.6kW. It requires an air pressure of 6–7 bar.
With a weight of 600 kg and dimensions of 3310 mm in length, 1360 mm in width, and 1820 mm in height, the machine is robust yet compact enough to fit into a variety of production settings.
Machine specifications:
| Diameter | 50-130mm (customizable) |
| Height | 50-200mm (customizable) |
| Speed | Max. 50 lids per minute |
| Power supply | 230 Volt / 50Hz / 3.6kW |
| Dimensions (lxwxh) | 3310x13600x1820mm |
| Weight | 600kg |
Additional information:
| Sealing | Top side |
| Compressor | Required |
| Air consumption | 6-7 bar |
| Placement | Dry areas |
| Material | 304 stainless steel |
| Controls | Inovance touchscreen |
| Speed control | Customizable |
| Input system | Automatic |
What is this machine for?
The automatic screw capping machine ASCM-V26 can apply lid on aluminum, tin, plastic and cardboard tubes,
Aluminum can
The automatic screw capping machine ASCM-V26 is suitable for applying plastic lids to aluminum cans.
Tin can
The automatic screw capping machine ASCM-V26 is suitable for applying plastic lids to tin cans.
Cardboard tube
The automatic screw capping machine ASCM-V26 is suitable for applying plastic lids to cardboard tubes.
Plastic container
The automatic screw capping machine ASCM-V26 is suitable for applying plastic lids to plastic containers.
Placement, maintenance & safety
Before the automatic screw capping machine is delivered to the customer, it undergoes a thorough test with the right material in our workshop at our location in Roosendaal. On request, Dutchpacks can also install the automatic lid applicator at the customer’s location and provide extensive guidance on the operation and adjustment of the machine, including information on the associated safety risks.
Dutchpacks guarantees service and maintenance of this automatic lid applicator, so you are assured of a device that is always in optimal condition. All components of the automatic screw capping machine are CE-approved, and the product complies with CE regulations.
Standard service
| Certification | CE-certificate |
| Quality control | Included |
| Warranty | 12 months |
| Configuration | Location Dutchpacks |
| Training | Location Dutchpacks |
Optional service
| Placement | Customer location |
| Configuration | Customer location |
| Training | Customer location |
| Service | 24/7 service contract |
| Maintenance | Maintenance contract |

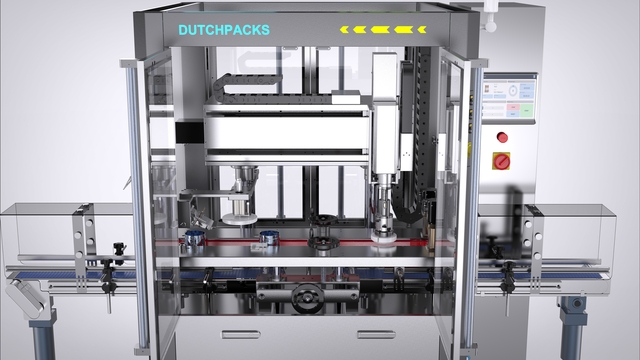

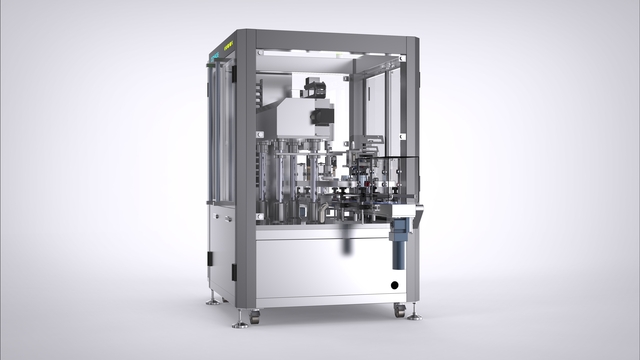

Picture gallery
Pictures of automatic lid applicator below.
