Automatic metal detector AMD-LCD is fast and sensitive
At Dutchpacks we introduce the automatic metal detector AMD-LCD, for detecting Fe (magnetic metal such as iron and chromium), non-Fe (non-magnetic metal such as copper and aluminum) and SUS (stainless steel). The sensitivity for certain products depends on the density, shape, working environment, conveyor belt speed and other general factors. The machine functions optimally in working conditions with temperatures between 0 and 50 ℃ and a humidity of less than 90%. The durable stainless steel frame is sturdy and environmentally friendly. When detecting metal, the AMD-LCD gives both a warning sound and a flashing light, and stops the belt immediately to prevent further processing. An automatic ejection system can be ordered as an option.
Automatic metal detector AMD-LCD is optimal for accurate metal detection
The detector of the automatic metal detector has a standard tunnel size with a width of 300mm and a height of 180mm. The maximum detectable size is a conveyor belt width of 250mm and a passage height of 150mm, these sizes can be adjusted to any desired size when ordering. The total machine length is 1500mm. In terms of sensitivity, the detector can detect ferrous metals (Fe) from a diameter of ≥1mm, non-ferrous metals (non-Fe) from ≥1.5mm and stainless steel (SUS) from ≥ 2mm.
The AMD-LCD conveyor system can carry a maximum weight of 10kg and the height of the conveyor belt from the floor is adjustable from 800mm (± 30mm). The conveyor belt running direction is from right to left when you look at the screen. The belt speed is adjustable between 0-30 meters/minute. The conveyor belt is made of white PVC material. The frame of the machine is made of 304 stainless steel, which ensures durability, environmental friendliness and corrosion resistance. The operation of the metal detector is in English, through an LCD touch screen, making it user-friendly for international users.
Machine specifications:
| Tunnel width | On customer’s request |
| Tunnel height | On customer’s request |
| Length | On customer’s request |
| Conveyor belt width | Max. 250mm (customizable) |
| Passage height | On customer’s request |
| Speed | 0-30 meter/minute |
| Power supply | 230 Volt / 50Hz |
Additional information:
| Alarm type | Warning sound and flashing light |
| Sensitivity | Fe ≥ 1mm Non-Fe ≥ 1.5mm SUS ≥ 2mm |
| Frame materiaal | Stainless steel 304 |
| Placement | Dry and damp areas (max. 90% humidity) |
| Operating language | LCD-touchscreen in English |
| Ejector | For automatic ejection of products (optional) |
What is this machine for?
The AMD-LCD automatic metal detector is suitable for detecting Fe, non-Fe and SUS.
Ferrous metals
Automatic metal detector AMD-LCD is suitable for detecting ferrous metals (iron, chrome, etc.).
Non-ferrous metals
Automatic metal detector AMD-LCD is suitable for detecting non-ferrous metals (aluminum, copper, etc.).
SUS
Automatic metal detector AMD-LCD is suitable for detecting SUS (stainless steel).
Placement, maintenance & safety
Before the AMD-LCD metal detector is delivered to the customer, it undergoes a thorough test with the right material in our workshop at our location in Roosendaal. On request, Dutchpacks can also install the metal detector at the customer’s location and provide extensive guidance on the operation and adjustment of the machine, including information on the associated safety risks.
Dutchpacks guarantees service and maintenance of the AMD-LCD metal detector, so you are assured of a device that is always in optimal condition. All components of the AMD-LCD metal detector are CE-approved, and the product complies with CE regulations.
Standard service
| Certification | CE-certificate |
| Quality control | Included |
| Warranty | 12 months |
| Configuration | Location Dutchpacks |
| Training | Location Dutchpacks |
Optional service
| Placement | Customer location |
| Configuration | Customer location |
| Training | Customer location |
| Service | 24/7 service contract |
| Maintenance | Maintenance contract |
Picture Gallery

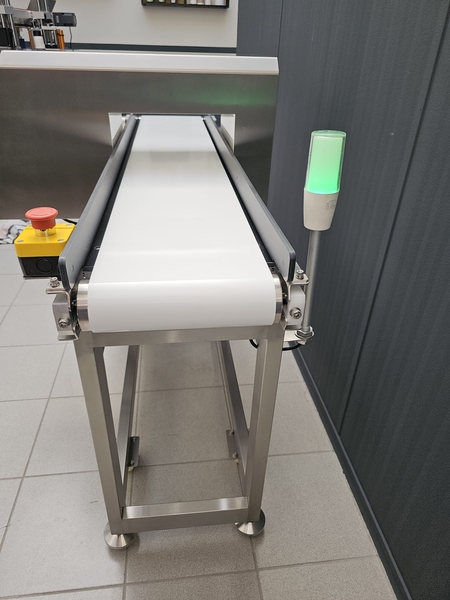

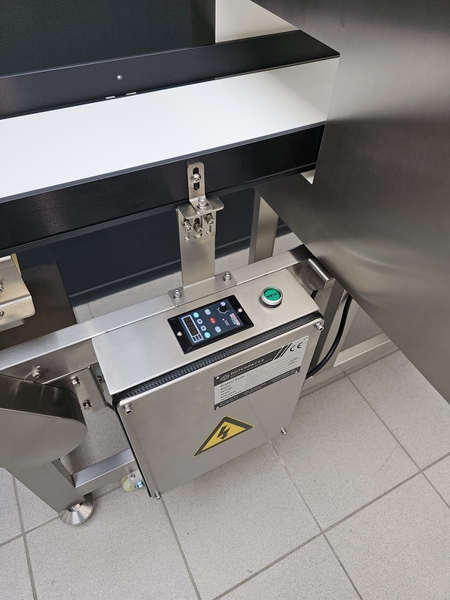

Photos of metal detector AMD-LCD below.
