Automatic labeling machine ALM-V1

Automatic and for round objects.

ALM-V1 is automatic

We as Dutchpacks offer the automatic labeling machine ALM-V1 as a robust and effective solution for labeling round objects. This machine is used in the chemical and brewing industry, among others. This automatic labeling machine is optimal for intensive use. The machine is made of stainless steel. The automatic labeling machine also produces little noise.








ALM-V1 is very time efficient

With a mechanical speed of 40 labels per minute, this automatic labeling machine is ideal for companies looking for a time-efficient labeling machine. This labeling machine operates on 230 volts. Also the objects rotate during labeling. To keep the objects in position, the machine has a pressure roller. This makes the object easily labeled by the machine. However, an air supply of 4-6 bar is required. On request, the label width can be adjusted to beyond 150 mm.

This automatic labeling machine is also easy to move using the wheels underneath the machine. Roll the automatic labeler to the desired place on your site and you can then tighten the extendable legs to get the machine in the correct place.
This labeling machine can only be placed and used in dry areas.

Machine specifications:

Diameter25-150mm
Height6-260mm
Label width10-150mm
Speed40 labels per minute
Power supply230 Volt / 50Hz / 0,6KW
Dimensions (lxwxh)1980x1150x1250mm
Weight190kg

Additional information:

LabelingProduct rotates during labeling process
CompressorRequired
Air consumption4-6 bar
PlacementDry areas
Extra optionsOn request, label width >150mm

What is this machine for?

Automatic labeling machine ALM-V1 labels all kinds of round objects such as bottles and cans.

aluminum can

Aluminum can

Automatic labeling machine ALM-V1 is suitable for labeling aluminum cans.

tin can

Tin can

Automatic labeling machine ALM-V1 is suitable for labeling tin cans.

cardboard tube

Cardboard tube

Automatic labeling machine ALM-V1 is suitable for labeling cardboard tubes.

plastic bottle

Plastic tube (PET)

Automatic labeling machine ALM-V1 is suitable for labeling plastic tubes (PET).

dry areas

Dry areas

Automatic labeling machine ALM-V1 is suitable for use in dry areas.

glass bottle

Glass bottle

Automatic labeling machine ALM-V1 is suitable for labeling glass bottles.

Placement, maintenance & safety

Before the automatic labeling machine is delivered to the customer, it is tested with the correct material at our location in Roosendaal, in the workshop. If desired, Dutchpacks can place the automatic labeling machine on location and provide clear guidance on the operation and adjustment of the labeling machine, with the associated safety risks. Dutchpacks offers service and maintenance on this automatic labeling machine, so you can be sure that your machine is always in top condition. All components of the automatic labeling machine are CE approved and the product complies with CE regulations.

Standard service

CertificationCE-certificate
Quality controlIncluded
Warranty12 months
ConfigurationLocation Dutchpacks
TrainingLocation Dutchpacks

Optional service

PlacementCustomer location
ConfigurationCustomer location
TrainingCustomer location
Service 24/7 service contract
MaintenanceMaintenance contract

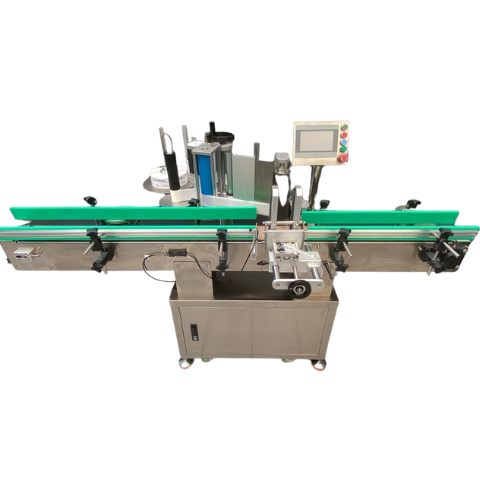

automatic labeling machine alm-v1 front touchscreen

Picture Gallery

All pictures of automatic labeling machine shown below.

automatic labeling machine alm-v1 front conveyor
automatic labeling machine alm-v1 touchscreen

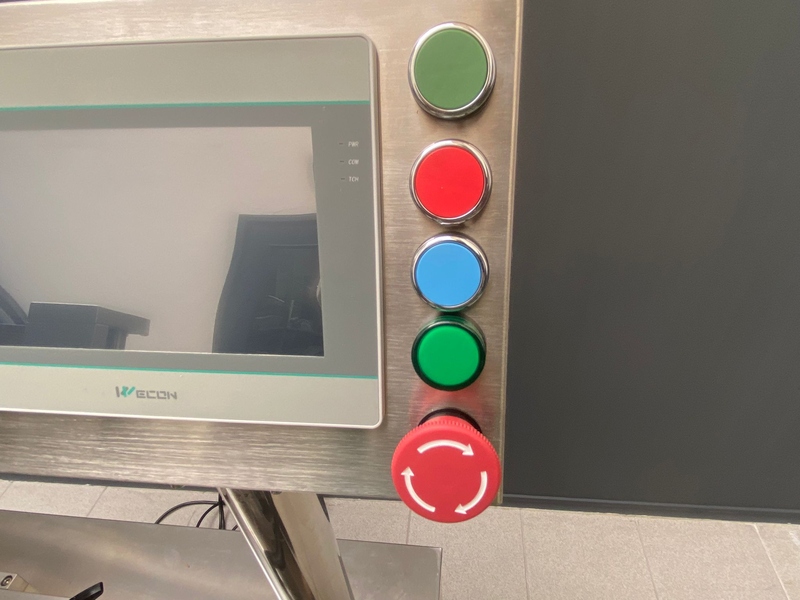

automatic labeling machine alm-v1 control buttons touchscreen

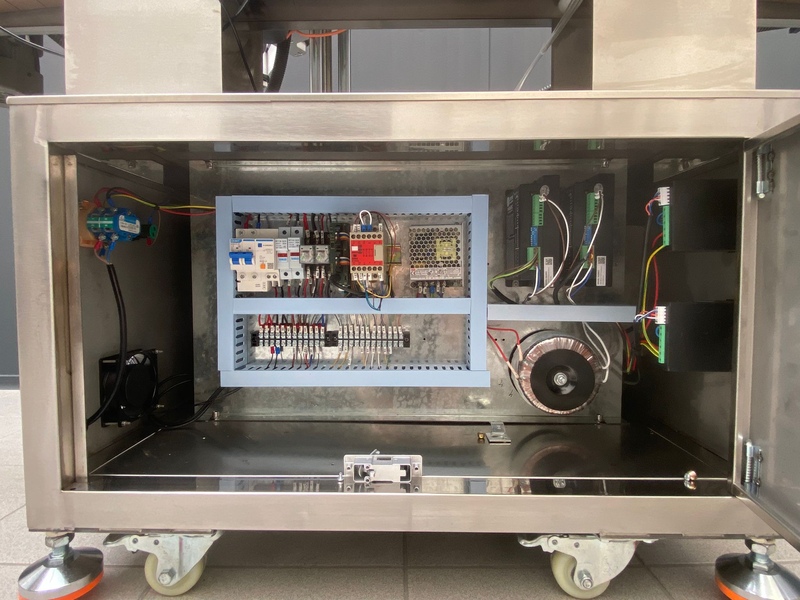

automatic labeling machine alm-v1 electrical box
automatic labeling machine alm-v1 motors

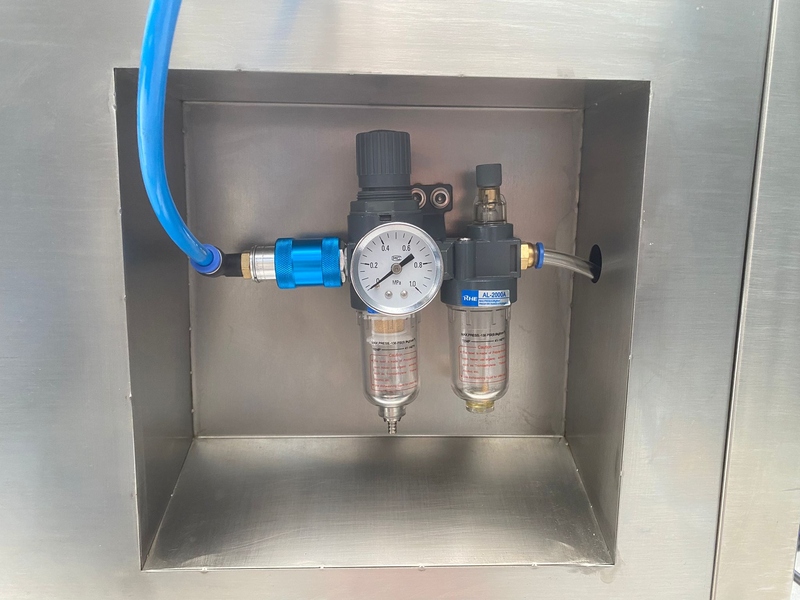

automatic labeling machine alm-v1 pressure gauge

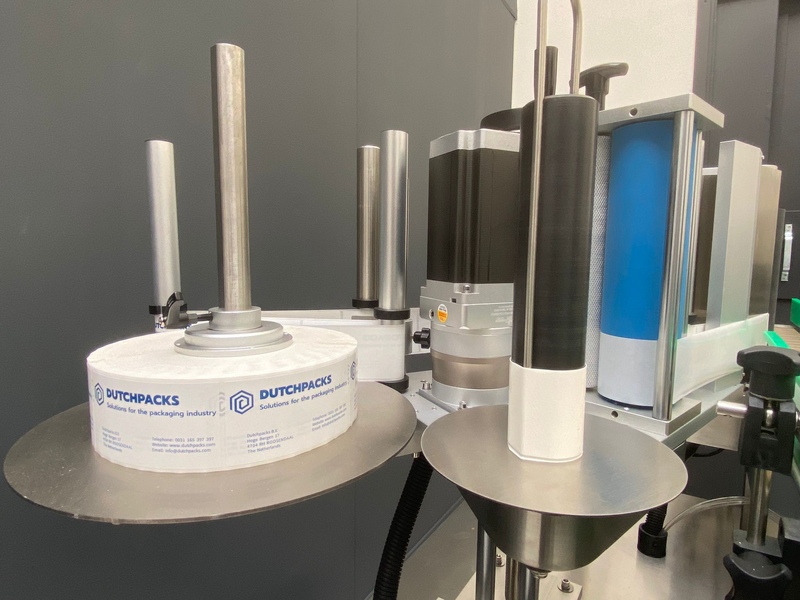

automatic labeling machine alm-v1 with labels
automatic labeling alm-v1 pressure rollers
automatic labeling machine alm-v1 back
automatic labeling machine alm-v1 front conveyor
automatic labeling machine alm-v1 touchscreen
automatic labeling machine alm-v1 control buttons touchscreen
automatic labeling machine alm-v1 electrical box
automatic labeling machine alm-v1 motors
automatic labeling machine alm-v1 pressure gauge
automatic labeling machine alm-v1 with labels
automatic labeling alm-v1 pressure rollers
automatic labeling machine alm-v1 back
